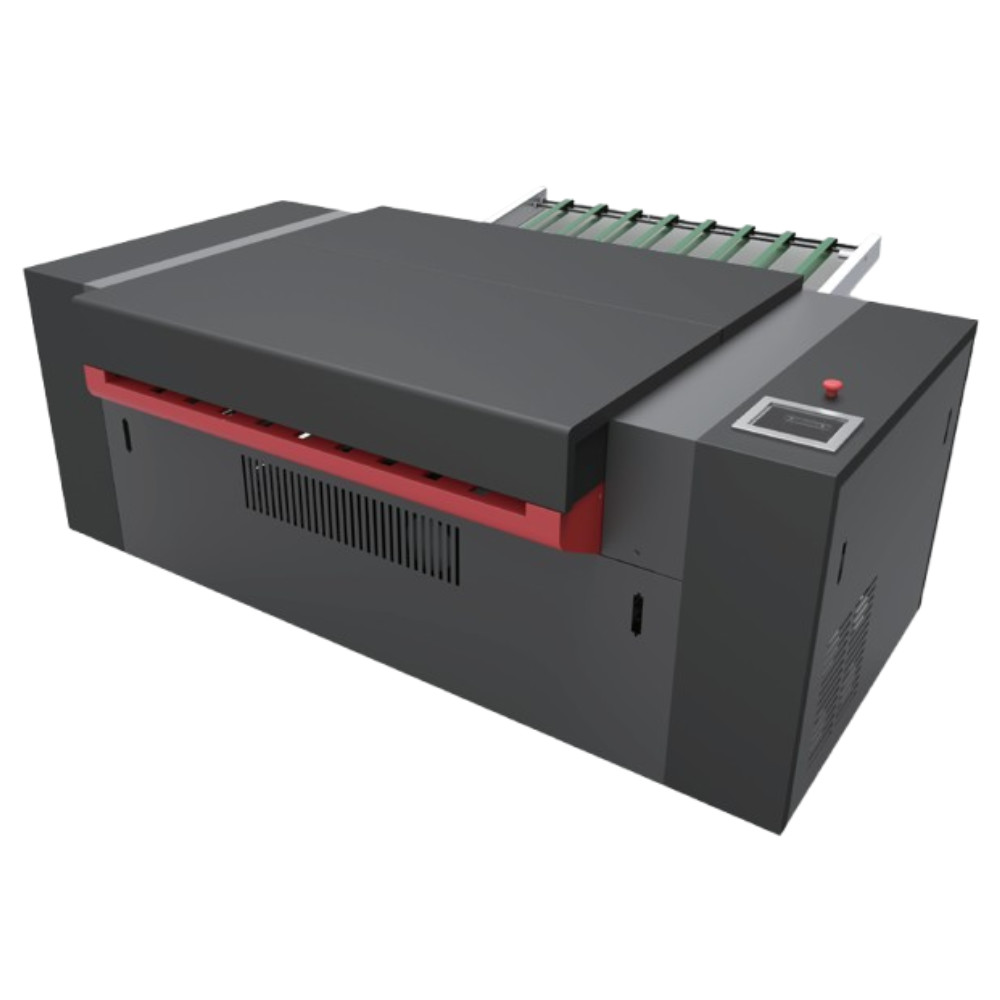

Name: DX1160ET/U Offset Thermal & UV CTP Plate Making Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: DX1160ET/U
Price: 33,000.00 USD
Availability: InStock

DX1160ET/U Offset Thermal & UV CTP Plate Making Machine

Βασικές πληροφορίες

Place of Origin:	China
Μάρκα:	PRINTYOUNG
Πιστοποίηση:	CE
Model Number:	DX1160ET/U

Minimum Order Quantity:	1 Set
Τιμή:	US 30000 ~ 36000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Επικοινωνήστε

Model:	DX1160ET/U	Resolution:	2400dpi / 1200dpi(optional)
Exposure Structure:	external drum	Max. Plate Size:	1130 * 930 mm
Min. Plate Size:	400 * 300 mm	Max. Hanged Line:	300 lpi
FM Dots Output:	AM/FM hybrid screening	Repeatability:	± 0.005 mm
Power Supply:	AC 220V 50/60Hz 6kw peak(single phase)	External Dimension:	2400 * 1375 * 1090 mm

DX1160ET/U Offset CTP Plate Making Machine

Technical Parameters

DX1160ET/U Offset CTP Plate Making Machine
Model	DX1160ET/U-32	DX1160ET/U-48	DX1160ET/U-64	DX1160ET/U-96
Laser System	830/405nm LD , 32channels	830/405nm LD , 48channels	830/405nm LD , 64channels	830/405nm LD , 96channels
Resolution	2400dpi / 1200dpi(optional)
Output Speed *(2400dpi,1030800mm, Online Plate Making)**	15 p/h	21 p/h	25 p/h	31 p/h
Output Speed *(1200dpi,575800mm, Online Plate Making)**	28 p/h	36 p/h	40 p/h	45 p/h
Exposure Structure	external drum
Max. Plate Size	1130 * 930 mm
Min. Plate Size	400 * 300 mm
Plate Thickness	thermal(830nm) 0.15 ~ 0.4 mm / processless thermal ctp plate / uv(405nm) 0.15 ~ 0.4 mm
Max. Hanged Line	300 lpi
FM Dots Output	AM/FM hybrid screening
Repeatability	± 0.005 mm
Power Supply	AC 220V 50/60Hz 6kw peak(single phase)
External Dimension	2400 * 1375 * 1090 mm
Weight	1400 kg
