AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine

AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine
Βασικές πληροφορίες
Place of Origin: China
Μάρκα: PRINTYOUNG
Πιστοποίηση: CE
Model Number: AY-500G
Minimum Order Quantity: 1 Set
Τιμή: US 16000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Επικοινωνήστε
Number Paper Height: 250 mm Counting Accuracy: 100%
Maximum Counting Speed: 1000 images/minute The Thickness of Paper: 70/350 ~ 500 gsm
Desk Size: 70 * 100 cm Pneumatic Counter Top: 120 * 90 cm (optional)
Weight of the Machine: 400 kg Power Supply for the Machine: 230V single phase AC , 50/60Hz , 5A

AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 0

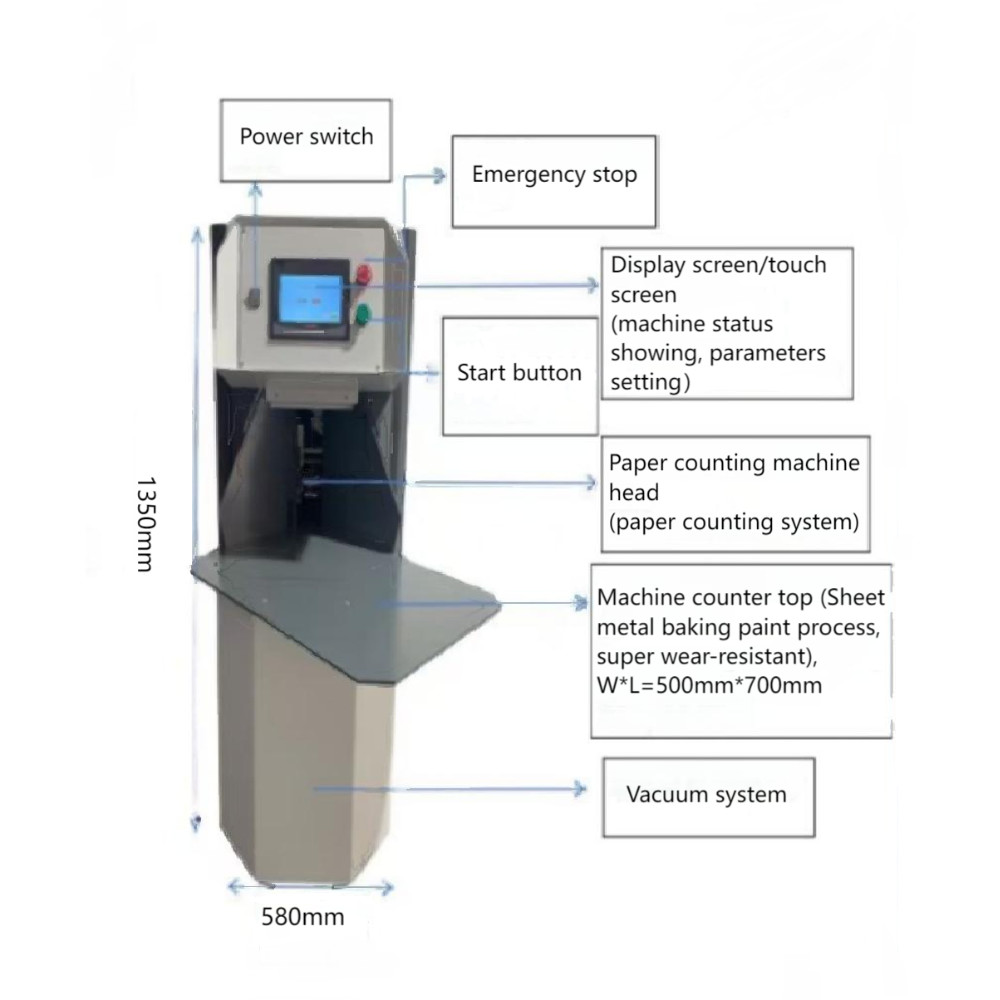

AY-500G Paper Counting Machine
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 1
Features
AY-500G paper counting machine adopts dual system paper counting.The working principle is a paper counting system with two suction sheets. "Paper corner upturned" is a typical problem of traditional paper counting technology(especially for paper over 100 grams),and the dual-system paper counting technology solves this problem very well. The paper counting machine can count paper,cardboard and even plastic sheets from 70G to 500G. The counting sequence is from top to bottom(allowing the operator to easily remove the counted paper from the top).When switching between different material thicknesses, adjustment is quick and easy by manually moving the plastic disc.No mechanical tools are required.Average time is 30 seconds.This means guaranteeing maximum productivity of the machine.The paper counting machine counts flat,clean paper with virtually no marks, scratches or smudges on the printed material.It can also count labels,stickers,photo paper, tickets and other finished products that have been trimmed or cut.The AY-500G is a floor-standing paper counter.It is reliable,flexible and very easy to operate.It can count paper sizes from 70x100cm and weights from 70G to 500G,covering almost every paper counting requirement.Ideal for medium to high volume counting needs.
Technical Parameters
AY-500G Paper Counting Machine
Number Paper Height
250 mm
Counting Accuracy
100%
Maximum Counting Speed
1000 images/minute
The Thickness of Paper
70/350 ~ 500 gsm
Desk Size
70 * 100 cm
Pneumatic Counter Top
120 * 90 cm (optional)
Weight of the Machine
400 kg
Power Supply for the Machine
230V single phase AC , 50/60Hz , 5A
Total Package Weight
450 kg
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 2
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 3
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 4
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 5
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 6
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 7
AY-500G Automatic Thick Cardboard and A4 Paper Counting Machine 8
