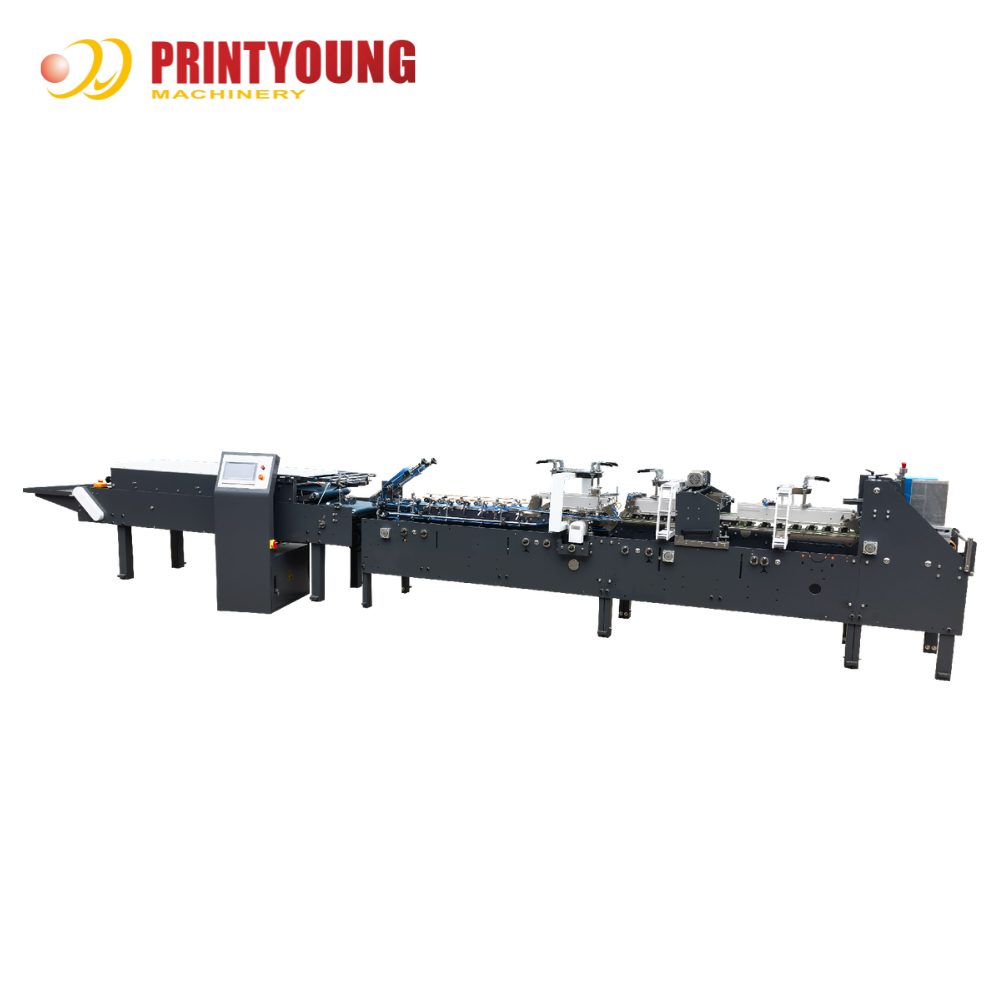

Name: ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: ZH-600G 700G 800G
Price: 12,750.00 USD
Availability: InStock

ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

Βασικές πληροφορίες

Τόπος καταγωγής:	Κίνα
Μάρκα:	PRINTYOUNG
Πιστοποίηση:	CE
Αριθμό μοντέλου:	ZH-600G 700G 800G

Ποσότητα παραγγελίας min:	1 Σετ
Τιμή:	USD 11500 ~ 14000 Set
Χρόνος παράδοσης:	15 εργάσιμες ημέρες
Όροι πληρωμής:	L/C, T/T
Δυνατότητα προσφοράς:	30 σετ ανά μήνα

Επικοινωνήστε

Μοντέλο:

ZH-600G 700G 800G

Υλικό χαρτιού:

210 ~ 600 g/m² χαρτόνι

Μέγιστη ταχύτητα σκαφών της γραμμής:

Συνεχή ρύθμιση 300 m/min

Τρόπος σίτισης:

Αυτόματη τροφοδοσία

Τρόπος:

πλαϊνή κόλληση, προ-δίπλωμα, σύγκρουση κάτω

Υλικό κόλλας:

Κόλλα

Ηλεκτρική ισχύς:

9kw AC 3PH 380V

Βάρος:

1600 κιλά 1700 κιλά 1900 κιλά

Πάνω από διάσταση:

8*1*1,3μ, 8*1,1*1,3μ, 9,5*1,2*1,3μ

ZH-600G Folder Gluer with Crash Lock Bottom

Features

ZH-600G is our most competitive folder gluer with crash lock bottom which developed by ourselves.It has two National Patents.Its easy operation,reasonable price and wide application make it a new leap forward in the history of folder gluer.It combines a variety of folder gluer functions:straight line box,pre-fold box,crash lock bottom box.Our machine is featured by multi-function,wide application,easy operation and competitive price.Compared to older generation folder gluer,our machines simplify the complicated construction,reduce the difficulty of test run and reduce the cost.Especially for the current packaging and printing industry with tough competition,it can help to shorter delivery time and recover your invest easily.It is ideal equipment in printing industry.

Technical Parameters

Model	ZH-600G	ZH-700G	ZH-800G
Paper Material	210 ~ 600 g/m² paperboard
Max. Liner Speed	0 ~ 300 m/min continuous adjustment
Feeding Way	automatic feeding
Way of Folding	side gluing , pre-folding , crash lock bottom
Glue Material	cold glue
Electric Power	9kw AC 3PH 380V
Weight	1600 kg	1700 kg	1900 kg
Over Dimension	8 * 1 * 1.3 m	8 * 1.1 * 1.3 m	9.5 * 1.2 * 1.3 m

Model	Box type	A	B	C(min)	D (min)
ZH-600G	Straight-line box	110 ~ 600 mm	60 ~ 500 mm	50 mm	10 mm
	Pre-fold box	170 ~ 500 mm	60 ~ 500 mm	80 mm	10 mm
	Crash lockbottom box	180 ~ 500 mm	100 ~ 500 mm	80 mm	40 mm
ZH-700G	Straight-line box	110 ~ 700 mm	60 ~ 500 mm	50 mm	10 mm
	Pre-fold box	170 ~ 600 mm	60 ~ 500 mm	80 mm	10 mm
	Crash lockbottom box	180 ~ 600 mm	100 ~ 500 mm	80 mm	40 mm
ZH-800G	Straight-line box	130 ~ 800 mm	60 ~ 700 mm	60 mm	10 mm
	Pre-fold box	170 ~ 700 mm	60 ~ 700 mm	80 mm	10 mm
	Crash lockbottom box	180 ~ 700 mm	100 ~ 700 mm	90 mm	50 mm

Configuration

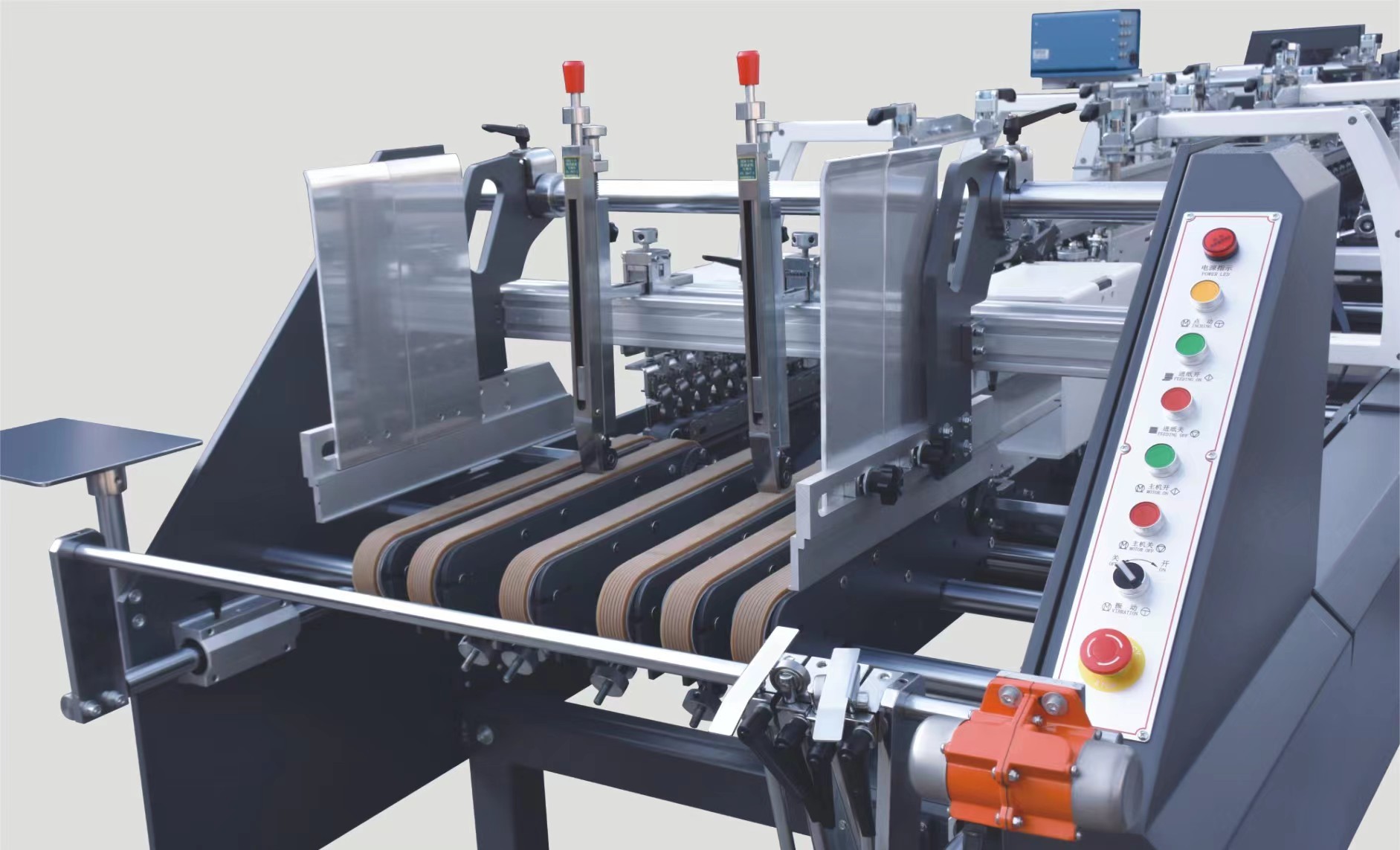

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

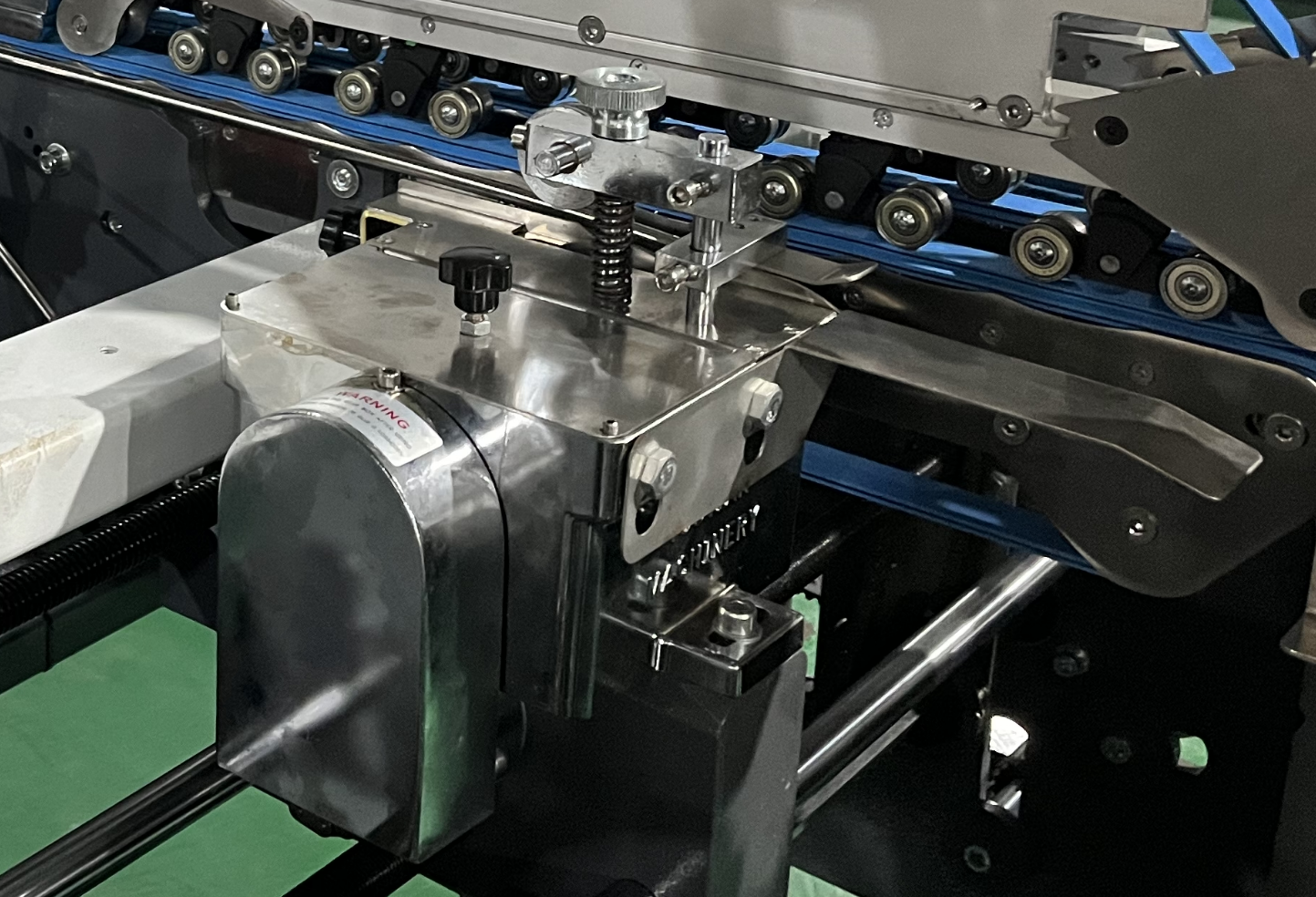

Lower Gluing Tank

Lower gluing tank is large volume.Easy to remove and clean.

Paste Cylinder

The upper paste cylinder is used to glue the crash lockbottom bottom box.

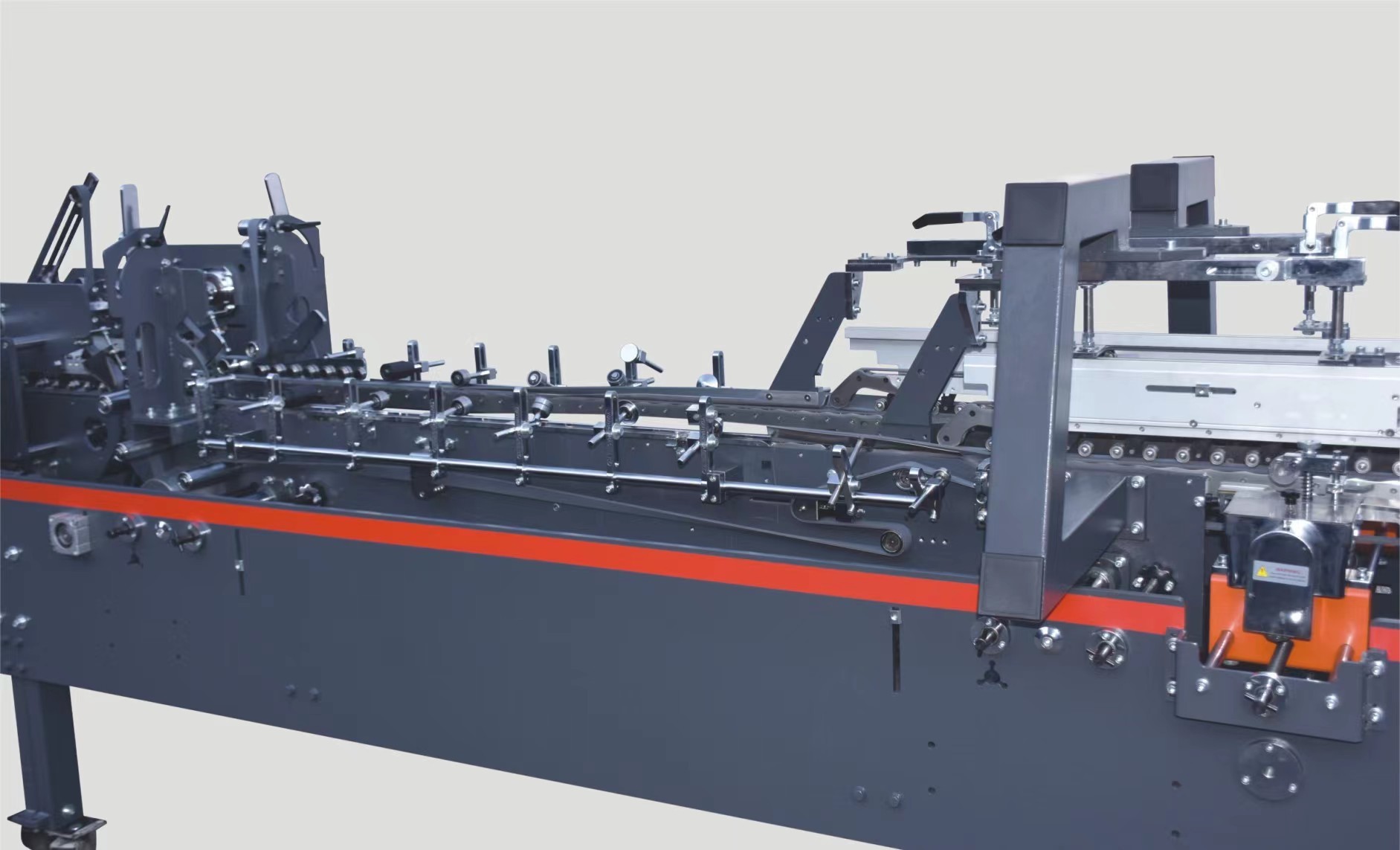

Folding and Closing

The Second and fourth folding line 180°.Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.Upper section moves back and forward,allowing for different box length.

Synchronous Belt & Synchronous Wheel

The most efficient mechanical power transmission method currently on the market.Reduce noise,reduce wear,and efficient power transmission system.

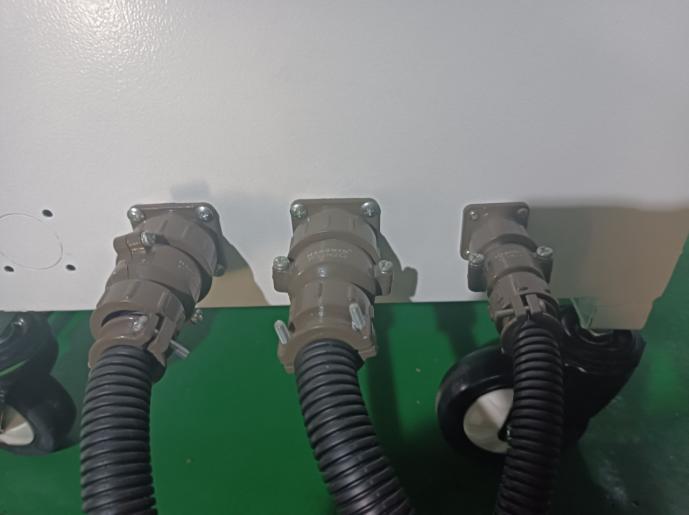

Aviation Connector

Easy to install and transport.

Independent Electrical Box

The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and atmospheric.

Main Box Samples

Ordinary Box Pre-fold Box Crash Lock Bottom Box Special Box
